Tvs Diode 400W Smaj6.5A

Basic Info.

Model NO.	Smaj6.5A Smaj7.0A Smaj10A
Model	Es2c
Batch Number	2016+
Brand	Sy
Stand-off Voltage	6.8-550 V
Peak Pulse Power	600W
Transport Package	Melf or Minimelf
Specification	RoHS
Trademark	SY
Origin	China
HS Code	85411000
Production Capacity	100kk

Product Description

400W TVS SMAJ100CA
1.Datasheet:

2.Products list:

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS
TYPE	Breakdown Voltage			Stand-off Voltage	Maximum Reverse Leakage @VRWM	Maximum Peak Pulse Current	Maximum Clamping [email protected]	Power Dissipation	Package
	[email protected]		IT	VRWM	IR	IRSM	VRSM	Pd
	Min	Max	mA	V	μA	A	V	W
SMAJ5.0	6.40	7.81	10	5.0	800	41.7	9.6	400	DO-214AC (SMA)
SMAJ5.0A	6.40	7.08	10	5.0	800	43.5	9.2	400
SMAJ6.0	6.67	8.15	10	6.0	800	35.1	11.4	400
SMAJ6.0A	6.67	7.37	10	6.0	800	38.8	10.3	400
SMAJ6.5	7.22	8.82	10	6.5	500	32.5	12.3	400
SMAJ6.5A	7.22	7.98	10	6.5	500	35.7	11.2	400
SMAJ7.0	7.78	9.51	10	7.0	200	30.1	13.3	400
SMAJ7.0A	7.78	8.60	10	7.0	200	33.3	12.0	400
SMAJ7.5	8.33	10.3	1.0	7.5	100	28.0	14.3	400
SMAJ7.5A	8.33	9.21	1.0	7.5	100	31.0	12.9	400
SMAJ8.0	8.89	10.9	1.0	8.0	50	26.7	15.0	400
SMAJ8.0A	8.89	9.83	1.0	8.0	50	29.4	13.6	400
SMAJ8.5	9.44	11.5	1.0	8.5	20	25.2	15.9	400
SMAJ8.5A	9.44	10.4	1.0	8.5	20	27.8	14.4	400
SMAJ9.0	10.0	12.2	1.0	9.0	10	23.7	16.9	400
SMAJ9.0A	10.0	11.1	1.0	9.0	10	26.0	15.4	400
SMAJ10	11.1	13.6	1.0	10.0	5.0	21.3	18.8	400
SMAJ10A	11.1	12.3	1.0	10.0	5.0	23.5	17.0	400
SMAJ11	12.2	14.9	1.0	11.0	5.0	19.9	20.1	400
SMAJ11A	12.2	13.5	1.0	11.0	5.0	22.0	18.2	400
SMAJ12	13.3	16.3	1.0	12.0	5.0	18.2	22.0	400
SMAJ12A	13.3	14.7	1.0	12.0	5.0	20.1	19.9	400
SMAJ13	14.4	17.6	1.0	13.0	5.0	16.8	23.8	400
SMAJ13A	14.4	15.9	1.0	13.0	5.0	18.6	21.5	400
SMAJ14	15.6	19.1	1.0	14.0	5.0	15.5	25.8	400
SMAJ14A	15.6	17.2	1.0	14.0	5.0	17.2	23.2	400
SMAJ15	16.7	20.4	1.0	15.0	5.0	14.9	26.9	400
SMAJ15A	16.7	18.5	1.0	15.0	5.0	16.4	24.4	400
SMAJ16	17.8	21.8	1.0	16.0	5.0	13.9	28.8	400
SMAJ16A	17.8	19.7	1.0	16.0	5.0	15.4	26.0	400
SMAJ17	18.9	23.1	1.0	17.0	5.0	13.1	30.5	400
SMAJ17A	18.9	20.9	1.0	17.0	5.0	14.5	27.6	400
SMAJ18	20.0	24.4	1.0	18.0	5.0	12.4	32.2	400
SMAJ18A	20.0	22.1	1.0	18.0	5.0	13.7	29.2	400
SMAJ20	22.2	27.1	1.0	20.0	5.0	11.2	35.5	400
SMAJ20A	22.2	24.5	1.0	20.0	5.0	12.3	32.4	400
SMAJ22	24.4	29.8	1.0	22.0	5.0	10.2	39.4	400
SMAJ22A	24.4	26.9	1.0	22.0	5.0	11.3	35.5	400
SMAJ24	26.7	32.6	1.0	24.0	5.0	9.3	43.0	400
SMAJ24A	26.7	29.5	1.0	24.0	5.0	10.3	38.9	400
SMAJ26	28.9	35.3	1.0	26.0	5.0	8.6	46.6	400
SMAJ26A	28.9	31.9	1.0	26.0	5.0	9.5	42.1	400
SMAJ28	31.1	38.0	1.0	28.0	5.0	8.0	50.1	400
SMAJ28A	31.1	34.4	1.0	28.0	5.0	8.8	45.4	400
SMAJ30	33.3	40.7	1.0	30.0	5.0	7.5	53.5	400
SMAJ30A	33.3	36.8	1.0	30.0	5.0	8.3	48.4	400
TYPE	Breakdown Voltage			Stand-off Voltage	Maximum Reverse Leakage @VRWM	Maximum Peak Pulse Current	Maximum Clamping [email protected]	Power Dissipation	Package
	[email protected]		IT	VRWM	IR	IRSM	VRSM	Pd
	Min	Max	mA	V	μA	A	V	W
SMAJ33	36.7	44.9	1.0	33.0	5.0	5.1	59.0	400	DO-214AC (SMA)
SMAJ33A	36.7	40.6	1.0	33.0	5.0	5.6	53.3	400
SMAJ36	40.0	48.9	1.0	36	5.0	4.7	64.3	400
SMAJ36A	40.0	44.2	1.0	36	5.0	5.2	58.1	400
SMAJ40	44.4	54.3	1.0	40	5.0	4.2	71.4	400
SMAJ40A	44.4	49.1	1.0	40	5.0	4.7	64.5	400
SMAJ43	47.8	58.4	1.0	43	5.0	3.9	76.7	400
SMAJ43A	47.8	52.8	1.0	43	5.0	4.3	69.4	400
SMAJ45	50.0	61.1	1.0	45	5.0	3.7	80.3	400
SMAJ45A	50.0	55.3	1.0	45	5.0	4.1	72.7	400
SMAJ48	53.3	65.1	1.0	48	5.0	3.5	85.5	400
SMAJ48A	53.3	58.9	1.0	48	5.0	3.9	77.4	400
SMAJ51	56.7	69.3	1.0	51	5.0	3.3	91.1	400
SMAJ51A	56.7	62.7	1.0	51	5.0	3.6	82.4	400
SMAJ54	60.0	73.3	1.0	54	5.0	3.1	93.6	400
SMAJ54A	60.0	66.3	1.0	54	5.0	3.4	87.1	400
SMAJ58	64.4	78.7	1.0	58	5.0	2.9	103	400
SMAJ58A	64.4	71.2	1.0	58	5.0	3.2	96.3	400
SMAJ60	67.7	81.5	1.0	60	5.0	2.8	107	400
SMAJ60A	67.7	73.7	1.0	60	5.0	3.1	96.8	400
SMAJ64	71.1	86.4	1.0	64	5.0	2.6	114	400
SMAJ64A	71.1	78.6	1.0	64	5.0	2.9	103	400
SMAJ70	77.8	95.1	1.0	70	5.0	2.4	125	400
SMAJ70A	77.8	86.0	1.0	70	5.0	2.7	113	400
SMAJ75	83.3	102.0	1.0	75	5.0	2.2	134	400
SMAJ75A	83.3	92.1	1.0	75	5.0	2.5	121	400
SMAJ78	86.7	106.0	1.0	78	5.0	2.2	139	400
SMAJ78A	86.7	95.8	1.0	78	5.0	2.4	126	400
SMAJ85	94.4	115.0	1.0	85	5.0	2.0	151	400
SMAJ85A	94.4	104.0	1.0	85	5.0	2.2	137	400
SMAJ90	100.0	122.0	1.0	90	5.0	1.9	160	400
SMAJ90A	100.0	111.0	1.0	90	5.0	2.1	146	400
SMAJ100	111.0	136.0	1.0	100	5.0	1.7	179	400
SMAJ100A	111.0	123.0	1.0	100	5.0	1.9	162	400
SMAJ110	122.0	149.0	1.0	110	5.0	1.5	196	400
SMA110A	122.0	135.0	1.0	110	5.0	1.7	177	400
SMAJ120	133.0	163.0	1.0	120	5.0	1.4	214	400
SMAJ120A	133.0	147.0	1.0	120	5.0	1.6	193	400
SMAJ130	144.0	176.0	1.0	130	5.0	1.3	231	400
SMAJ130A	144.0	159.0	1.0	130	5.0	1.4	209	400
SMAJ150	167.0	204.0	1.0	150	5.0	1.1	268	400
SMAJ150A	167.0	185.0	1.0	150	5.0	1.2	243	400
SMAJ160	178.0	218.0	1.0	160	5.0	1.0	287	400
SMAJ160A	178.0	197.0	1.0	160	5.0	1.2	259	400
SMAJ170	189.0	231.0	1.0	170	5.0	0.99	304	400
SMAJ170A	189.0	209.0	1.0	170	5.0	1.09	275	400
Notes:suffix with "CA" means bi-directional(e.g,SMAJ5.0CA), electrical characteristics apply in both directions.

3.Package:

4.Reliability Test List:

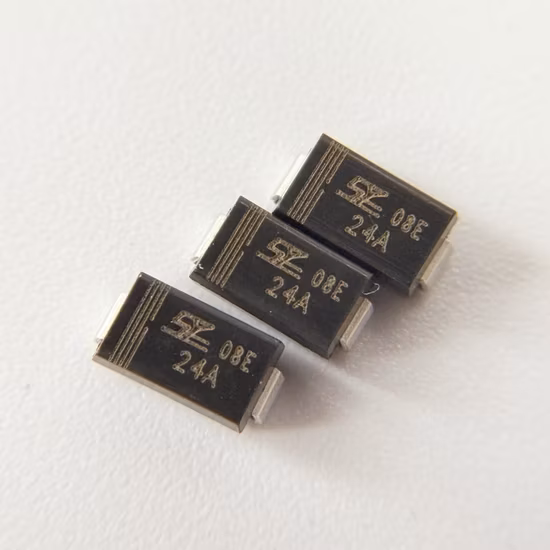

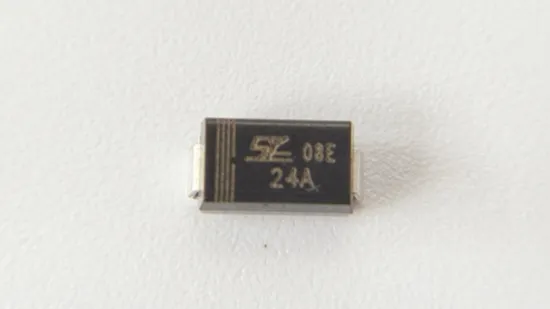

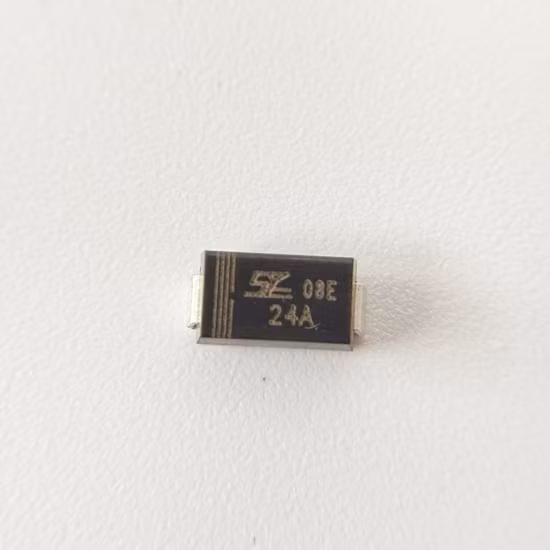

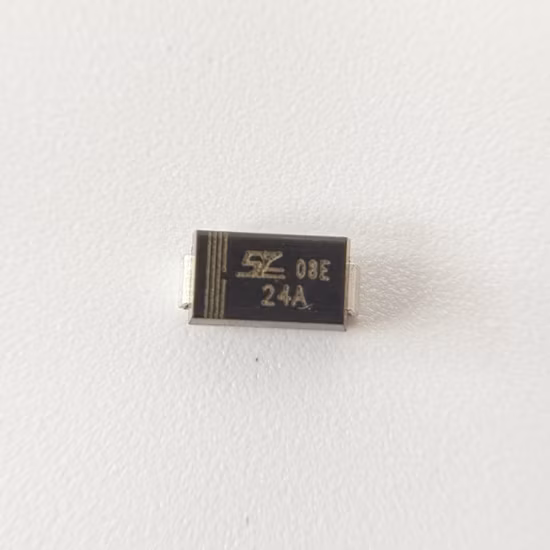

5.Product Picture:
6.Our Fair:7.Contact Us:

8. FAQ:
1, Are you Manufacturer or trading company?
We are a manufacturer only in diode, bridge rectifier and automotive rectifier diode. We could supply competitive price and fast delivery and good quality with prompt service, we guarantee that we will reply to our customers within 1-12H once we receive the inquiry, we will do the utmost to help to reduce your cost.

2. May I have some samples for testing?
Yes, sure. We offer free samples for you and you only need to cover the international freight for samples. when you have 1st order with us, we will deduct the freight from your first order.
3. What about the delivery ?
Usually the lead time is about 1-2 weeks after receiving payment. For many normal parts, we have the quantity in stock and we have the system to ensure the delivery will be on time.
4. What about the payment terms ?
Order amount is less than $10000: 100% Advance.
Order amount is between $10000 and $20000: 50% Advance and 50% before shipment.
Order amount is more than $20000: 30% Advance and 70% before shipment.
Old customer with good reputation: NET 30days.

5. What about the shipment terms ?
FOB Shanghai by air;
CFR your city seaport by sea;

We also work with DHL, FEDEX, TNT and etc. For large quantity , it's up to you to choose the freight forwarder and if you need, we could assist you. If you have any question or need techical support, please do not hesitate to contact us, we will try our best to serve you.
