Split Core Hall Effect Sensor Miniature DC Current Sensor

Split Core Hall Effect Sensor Miniature DC Current Sensor

Overview JXK-7 Split Core Hall Current Sensor Open Loop DC Current Transmitter AC 0-1500A Current TransducerProduct Desc;
Overview
Basic Info.
Model NO. JXK-7
Customized Customized
Power Supply DC24V,AC220V Can Be Customized
Accuracy 0.1%Fs
Warranty 2 Years
Input AC/DC 0-1000A Can Be Customized
Output Signal 4-20mA,0-10V,0-5V,1-5V etc
Product Name Jxk-7 Split Core AC /DC Current Sensor
Transport Package 1 Box with Product Manual
Specification 200g
Trademark QIDIAN
Origin China
HS Code 9030339000
Production Capacity 100pieces/ Day
Product Description
JXK-7 Split Core Hall Current Sensor Open Loop DC Current Transmitter AC 0-1500A Current TransducerProduct Description

<1>. Working Principle: Open loop direct measurement
<2>. Usage: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
<3>. Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
<4>. Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
<5>. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
<6>. Full channel configuration, parameter customizable.

Product Parameters
Power Supply
Power supply

DC12V, DC15V, DC24V,

AC220V, Customizable

Input

Input signalAC/ DC 0 ~ 1600A, Customizable
Output
Output signal4-20mA, 0-20mA, 0-5V, 0-10V, Customizable
Other Parameters
Aperture available20mm, 38mm, 50mm, 75mm, 80mm
Accuracy0.5%F.S.
Respond time<200ms
Linearity0.5%F.S.
Temperature drift≤500PPM/ºC
Band widthDC~20KHz
Consumption of current≤25mA
Isolation voltage resistance2.5k/50Hz,1Min
Offset voltage≤20mvV
Zero output≤0.15mA
Di/dt follow>50A/uS
Working ambient-10ºC~+70ºC
Storage ambient-25ºC~+85ºC
Selection

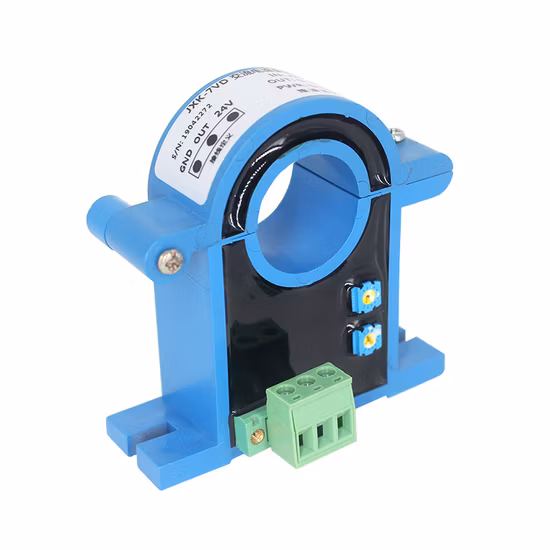

Split Core Hall Effect Sensor Miniature DC Current Sensor

Detailed Photos

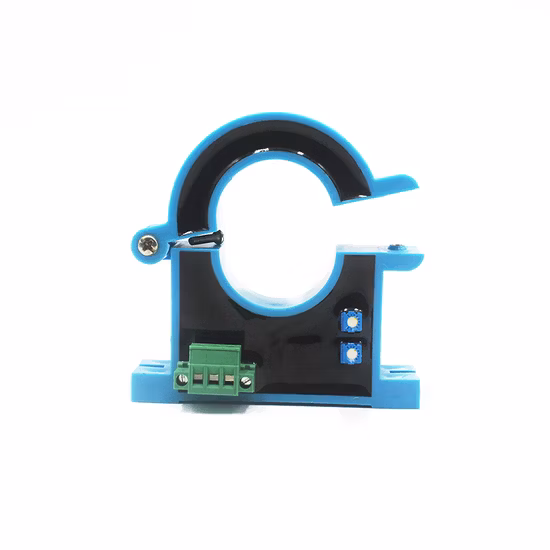

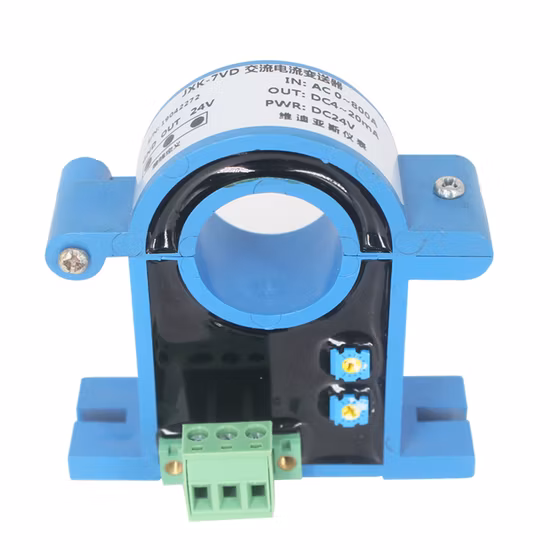

Split Core Hall Effect Sensor Miniature DC Current Sensor

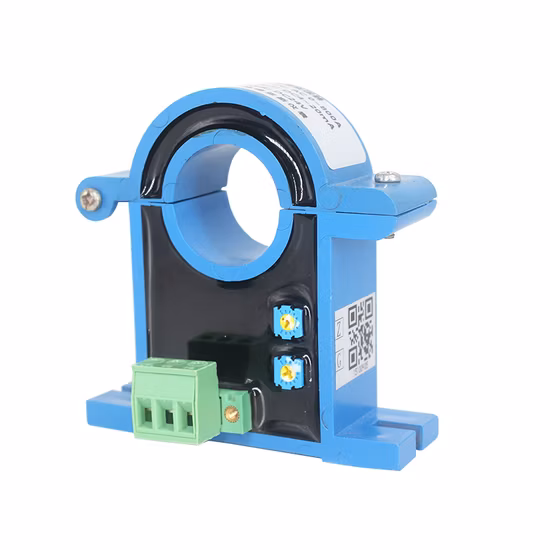

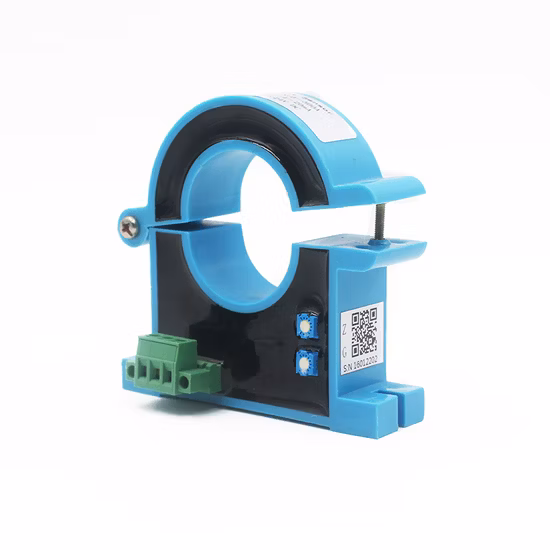

Split Core Hall Effect Sensor Miniature DC Current Sensor

Product size

Split Core Hall Effect Sensor Miniature DC Current Sensor

Wiring
